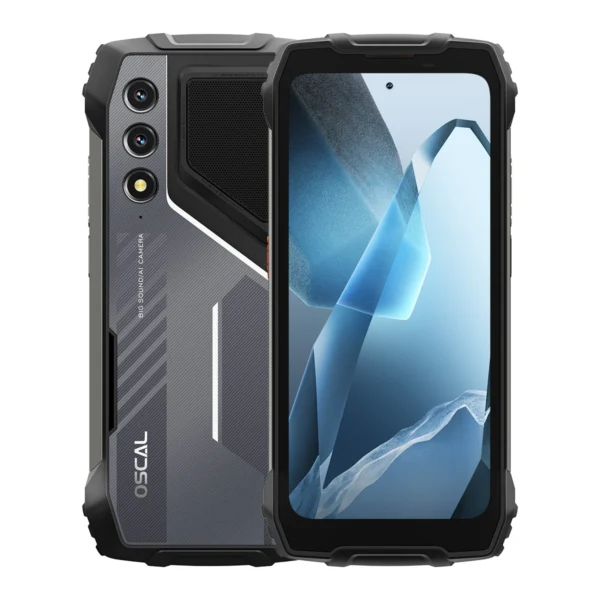

Oscal Pilot 1



Specifications
Price in Bangladesh
Official | 20,000 |
General
Device Type | Smartphone |
Model | Pilot 1 |
Announced | January, 2025 |
Released | January, 2025 |
Status | Available |
Hardware & Software
Operating System OS => Every computer system run on a base software called Operating System (OS). Operating System controls all basic operations of the computer (such as smartphone, PDAs, tablet computers and other handheld devices). The Operating System allows the user to install and run third party applications (apps), apps are used to add new functionality to the device. | Android |
OS Version | v14 |
User Interface UI or user interface of a device is the look and feel of the on-screen menu system. How it works, its color scheme, how it responds to button presses, all of these things are part of the user interface. | DokeOS 4.0 |
Chipset Chipset is a group of integrated circuits designed to perform one or a more dedicated functions, often with real time computing constraints, Popular smartphones are equipped with more advanced embedded chipsets that can do many different tasks depending on their programming. | Mediatek Helio G81 |
CPU CPU (Central Processing Unit) mostly known as processors, CPU processes instructions in order to carry out certain functions that make your device operate properly. Processors are often described as the brain of computers, smartphones and tablets, Smartphones and tablets rely on processors to carry out their every task, Processors are an incredibly important factor in selecting any type of computing device, including your smartphone. | Octa-core (2x2.0 GHz Cortex-A75 & 6x1.8 GHz Cortex-A55) |
CPU Cores | 8 Cores |
Architecture | 64 bit |
Fabrication | 12 nm |
GPU GPU (Graphics Processing Unit) is a single-chip processor designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display, This includes things such as lighting effects, object transformations, and 3D motion. | Mali-G52 MC2 |
RAM (Memory) RAM (Random Access Memory) is a type of computer memory that can be accessed randomly, any byte of memory can be accessed without touching the preceding bytes that allows information to be stored and accessed quickly from random locations. RAM is the most common type of memory found in computer systems, smartphones, tablets and other electronic devices. | 6 GB |
Design
Dimensions | 185.5 x 85 x 22 mm (7.30 x 3.35 x 0.87 in) |
Weight | 540 g (1.19 lb) |
Colors |
Black, Orange |
Water Resistant | Water resistant (up to 1.5m for 30 min) |
IP Rating | IP68/IP69K |
Ruggedness | Dust proof |
Display
Display Type Display Technology => A number of display technologies and types used in mobile phones => TFT (Thin Film Transistor), IPS (In-Place Switching), OLED (Organic Light Emitting Diode), AMOLED (Active-Matrix Organic Light-Emitting Diode), Super AMOLED (an even advanced version of AMOLED), Resistive Touchscreen (Resistive touchscreens contain two layer of conductive material with a very small gap between them which acts as a resistance), Capacitive Touchsceen (Capacitive touchscreen technology consists of a layer of glass coated with a transparent conductor) | IPS LCD |
Size | 6.67 inches (16.94 cm) |
Resolution | 1080x2400 px (FHD+) |
Aspect Ratio | 20:9 |
Pixel Density Pixel Density (PPI) is refers to the concentration of pixels on a particular display, measured in pixels per inch (ppi). Pixel density is calculated by dividing the diagonal pixel resolution of a display by its diagonal size, higher pixel density better display quality. | 395 ppi |
Screen to Body Ratio | 68.1% |
Touch Screen | Capacitive Touchscreen, Multi-touch |
Brightness | 700 nits |
Refresh Rate | 90 Hz |
HDR 10 / HDR+ support |
Rear Camera
Camera Setup | Dual |
Main Camera | 50 MP |
Second Camera | 2 MP |
Autofocus | Yes |
OIS | |
Flash Flash Light => There is commonly two types of flash lights are used in camera mobile phones, LED Flash (LED flash offers lower power consumption with drive circuitry that takes up very little room, LEDs can be strobed faster than any other light source), Xenon Flash (xenon flash produces an extremely intense full-spectrum white light for a very short duration) | LED Flash |
Image | 8150 x 6150 Pixels |
Settings | Exposure compensation, ISO control |
Zoom | Digital Zoom |
Shooting Modes | Continuous Shooting, High Dynamic Range mode (HDR) |
Aperture | f/1.8 |
Camera Features |
Auto Flash, Face detection, Touch to focus |
Video | 1080p@30fps |
Video Recording Features | 1920x1080 |
Video FPS | 30 fps |
Front Camera
Camera Setup | Single |
Secondary | 32 MP |
Video | 1080p@30fps |
Video FPS | 30 fps |
Battery
Battery Type Battery Type => Cell phones run on various kinds of batteries depending on the manufacturer, phone size or shape and features. There are basically four types of cell phone batteries => Lithium Polymer, Lithium Ion, Nickel Metal Hydride and Nickel Cadmium. | Li-Ion (Lithium Ion) |
Placement | Non-removable |
Capacity Battery Capacity is a measure (typically in Amp-hr) of the charge stored by the battery, and is determined by the mass of active material contained in the battery. The battery capacity represents the maximum amount of energy that can be extracted from the battery under certain conditions. | 15000 mAh |
Quick Charging | 33W wired, 20% in 27 min |
Wireless Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. |
10W reverse wired |
USB Type-C | Yes |
Storage
Storage Type | eMMC 5.1 |
Storage Capacity | 256 GB |
USB OTG |
Network
2G Network |
GSM 850 / 900 / 1800 / 1900 |
3G Network |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
4G Network |
1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 34, 38, 39, 40, 41, 66 |
SIM SIM (Subscriber Identity Module) is a small card that contains mobile network subscriber's account information. This allows the phone using the card to attach to a mobile network. The SIM card is most commonly associated with GSM and UMTS mobile networks. Moving a SIM card from one phone to another allows a subscriber to switch mobile phones without having to contact their mobile network carrier. SIM cards can also be used by a phone to store limited amounts of data, such as phone numbers and text messages. | Standard SIM |
Data
GPRS GPRS (General Packet Radio Service) is a packet oriented mobile data service on the 2G and 3G cellular communication system's global system for mobile communications (GSM), Generally, GPRS is used for the purpose of wireless data transfer, such as sharing pictures and videos or browsing the Internet via a mobile phone connection. | |
EDGE EDGE (Enhanced Data GSM Environment) is a wireless network technology generally considered the next step in the 2G network offers data transfer rates up to four times faster than ordinary GSM networks, Generally, EDGE is used for the purpose of wireless data transfer, such as sharing pictures and videos or browsing the Internet via a mobile phone connection. | |
Speed | HSPA, LTE |
Web Browser Web Browser => a web browser is a software application used to locate, retrieve and display content on the World Wide Web, including Web pages, images, video and other files, The primary function of a web browser is to render HTML, the code used to design or markup webpages. | HTML5 |
Messaging
SMS SMS (Short Messaging Service) is a text messaging service component of phone, Web, or mobile communication systems. It uses standardized communications protocols to allow mobile phone devices to exchange short text messages over the networks. | Yes |
MMS MMS (Multimedia Messaging Service) is a standard way to send messages that include multimedia content (audio clips, video clips and images) to and from mobile phones over wireless networks using the WAP protocol. | |
Email Email (Electronic Mail) is a system for receiving, sending, and storing electronic messages, Similar to a letter, email is text messages that may contain files, images, or other attachments sent via the internet to a recipient by using applications and software prograps. An email address is required to receive email, and that address is unique to the user. | Yes |
IM IM (Instant Messaging) is an exchange of text messages through a software application, it enable you to create a kind of private chat room with another individual in order to communicate in real time over the Internet. | Yes |
Connectivity
Bluetooth Bluetooth is a wireless communications technology for exchanging data between mobile phones, headsets, computers and other network devices over short distances without wires, Bluetooth technology was primarily designed to support simple wireless networking of personal consumer devices. | v5.3 |
Wi-fi Wi-Fi is a popular wireless networking technology using radio waves to provide high-speed network connections that allows devices to communicate without cords or cables, Wi-Fi is increasingly becoming the preferred mode of internet connectivity all over the world. | 802.11 a, b, g, n, ac |
Wi-fi Hotspot | |
Infrared Infrared connectivity is an old wireless technology used to connect two electronic devices. It uses a beam of infrared light to transmit information and so requires direct line of sight and operates only at close range. | |
USB | Mass storage device, USB charging |
GPS GPS The Global Positioning System is a satellite-based radio navigation system, GPS permits users to determine their position, velocity and the time 24 hours a day, in all weather, anywhere in the world, In order to locate your position, your device or GPS receiver must have a clear view of the sky. | Yes with A-GPS, Glonass |
NFC NFC (Near field communication) is a set of standards for smartphones and similar devices to establish peer-to-peer radio communications with each other by touching them together or bringing them into proximity, usually no more than a few inches. |
Media
FM Radio | FM radio |
Loudspeaker | Yes |
3.5mm Jack | Yes |
Audio Jack | USB Type-C |
Sensors & Security
Fingerprint Sensor | |
Fingerprint Sensor Position | Side-mounted |
Light Sensor | Light sensor, Proximity sensor, Accelerometer, Compass, Gyroscope |
Face Unlock | Yes |
More
Made By | China |
Performance Tests
Oscal Pilot 1 Price in Bangladesh
The Oscal Pilot 1 is officially priced at ৳20,000 for the 256GB storage variant. This budget-friendly smartphone offers impressive features for its price, including a large battery, robust design, and a decent camera setup, making it an attractive option for those looking for an affordable, high-performance device. Available in two stylish colors, Black and Orange, the Oscal Pilot 1 stands out for its ruggedness with an IP68/IP69K rating, making it water and dust-resistant. It is an ideal choice for users who need a durable phone with solid performance for daily tasks, light gaming, and photography.
Oscal Pilot 1 Specifications
Display and Design
The Oscal Pilot 1 features a 6.67-inch IPS LCD display with a resolution of 1080×2400 pixels, offering sharp visuals and vibrant colors. With a 395 ppi pixel density, the display ensures crisp text and images. The 90Hz refresh rate provides a smooth scrolling experience, enhancing usability for general browsing and app navigation. The screen is also equipped with HDR10 support for better contrast and color accuracy in supported content.
In terms of design, the Pilot 1 is built to last. It boasts a rugged body with an IP68/IP69K rating, meaning it is dustproof and water-resistant up to 1.5 meters for 30 minutes. The phone’s dimensions are 185.5 x 85 x 22 mm, making it quite bulky at 540g. Despite its weight, it maintains a sleek aesthetic with a choice of Black and Orange colors, giving users a rugged yet stylish look.
Performance and Processor
Under the hood, the Oscal Pilot 1 is powered by the MediaTek Helio G81 chipset, an octa-core processor consisting of two 2.0 GHz Cortex-A75 cores and six 1.8 GHz Cortex-A55 cores, paired with the Mali-G52 MC2 GPU. This combination provides reliable performance for everyday tasks and light gaming, ensuring smooth multitasking without significant lag. The phone comes with 6GB of RAM and 256GB of internal storage, offering ample space for apps, media, and files. Expandable storage is not available, but the large internal storage is sufficient for most users.
The phone runs on Android 14 with DokeOS 4.0, delivering a user-friendly interface with additional customization options.
Camera and Video
The Oscal Pilot 1 is equipped with a dual-camera setup on the back, featuring a 50 MP main camera with an f/1.8 aperture for great low-light performance and a 2 MP secondary camera for depth sensing. The camera setup also includes features like continuous shooting, HDR mode, and digital zoom. Autofocus and LED Flash are available to ensure sharp and bright shots even in challenging lighting conditions.
For video, the rear camera supports 1080p video recording at 30fps, providing clear and stable footage. On the front, the 32 MP camera is designed for high-quality selfies and supports 1080p video recording at 30fps as well. The front camera’s impressive resolution helps users capture detailed and vibrant self-portraits.
Battery and Charging
A standout feature of the Oscal Pilot 1 is its massive 15,000 mAh battery, which ensures that the phone can last for days on a single charge. This impressive battery size is ideal for users who need extended use without worrying about constantly recharging.
The device supports 33W wired fast charging, allowing the battery to charge up to 20% in just 27 minutes. It also features 10W reverse wireless charging, enabling you to charge other devices using your phone. While the non-removable battery adds to the phone’s bulk, it’s well worth it for those who need long-lasting battery life.
Connectivity and 5G Support
The Oscal Pilot 1 supports a wide range of connectivity options, including Bluetooth v5.3, Wi-Fi 802.11 a/b/g/n/ac, and FM radio for entertainment. It also has USB Type-C for charging and data transfer, along with USB OTG support. The phone features GPS with A-GPS and Glonass, ensuring accurate navigation and location services.
For cellular connectivity, the device supports 2G, 3G, and 4G networks but does not have 5G support. It uses dual-SIM functionality, allowing users to use two SIM cards simultaneously. With fast LTE support, you can enjoy high-speed data for browsing and streaming.
Additional Features
The Oscal Pilot 1 includes several useful sensors such as a side-mounted fingerprint sensor, light sensor, proximity sensor, accelerometer, compass, and gyroscope. The Face Unlock feature is also available for enhanced security. The device runs on Android 14 with DokeOS 4.0, providing a smooth, customizable interface.
Reason to Buy
- Massive Battery: With a 15,000 mAh battery, you can enjoy extended usage without worrying about recharging constantly.
- Rugged Design: The IP68/IP69K rating ensures your device is resistant to water, dust, and drops, making it perfect for outdoor enthusiasts.
- Impressive Front Camera: The 32 MP front camera captures clear, vibrant selfies and supports 1080p video recording.
- Affordable Price: At ৳20,000, the Oscal Pilot 1 offers excellent value for the features it provides.
- Fast Charging: With 33W fast charging, you can quickly recharge your device, getting 20% in just 27 minutes.
Verdict
The Oscal Pilot 1 is a fantastic option for budget-conscious buyers who prioritize a long-lasting battery, solid performance, and a rugged design. While it doesn’t support 5G, its 5G-ready features, ample storage, and water-resistant build make it a competitive choice in the budget smartphone category. Whether you’re a student, a professional, or someone who enjoys outdoor activities, the Oscal Pilot 1 offers great value at an affordable price.
FAQ
Q1: Does the Oscal Pilot 1 support 5G? No, the Oscal Pilot 1 supports 4G connectivity but does not have 5G support.
Q2: What is the battery life like on the Oscal Pilot 1? The Oscal Pilot 1 has an incredibly large 15,000 mAh battery, providing several days of usage on a single charge.
Q3: Can I expand the storage on the Oscal Pilot 1? No, the Oscal Pilot 1 does not support expandable storage, but it comes with 256GB of internal storage, which should be sufficient for most users.
Q4: Is the camera quality good on the Oscal Pilot 1? Yes, the 50 MP rear camera and 32 MP front camera offer excellent image quality, even in low-light conditions.
Q5: What version of Android does the Oscal Pilot 1 run on? The Oscal Pilot 1 runs on Android 14 with the DokeOS 4.0 user interface.
